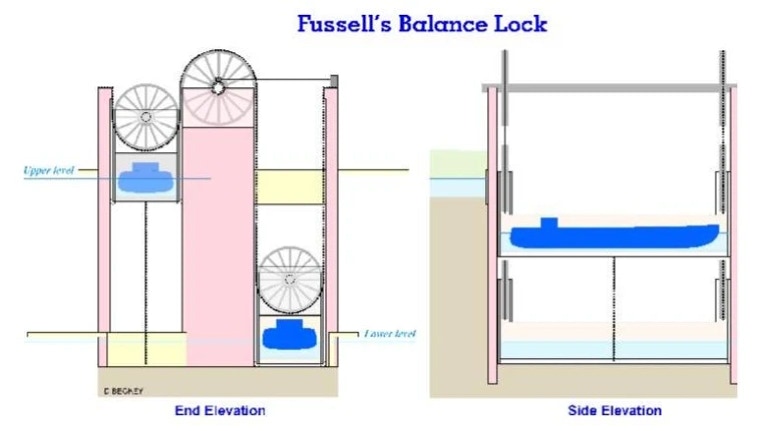

The best preserved caisson site on the Great Western Canal is at Nynehead (with a drop of 24 feet). It appears similar to the above
There's an excellent animation at: http://nynehead.org/canal/lift_animation.html, (Warning...loud noise at the start!)
